Description of Insulated Cold Room Panels

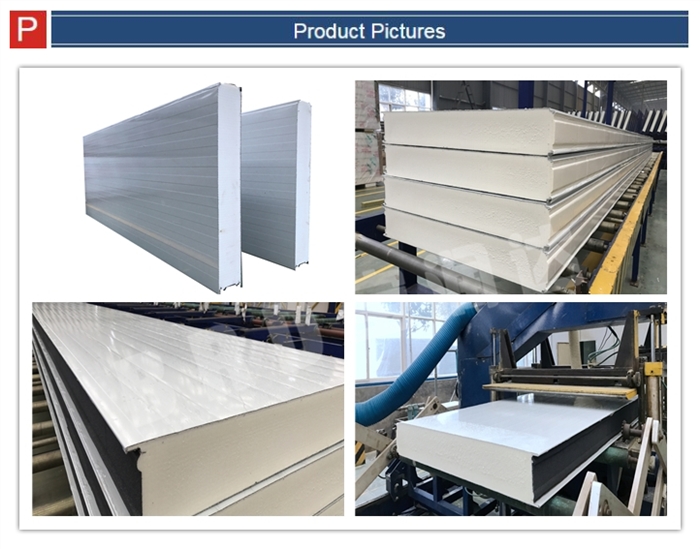

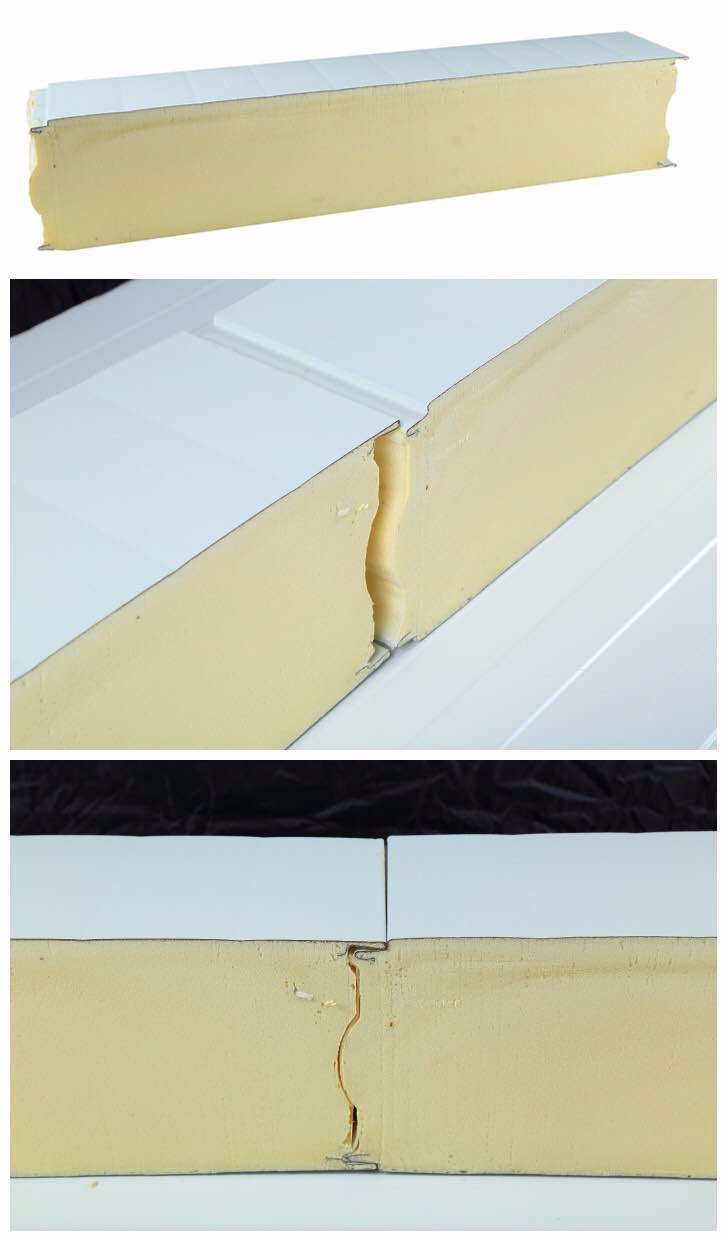

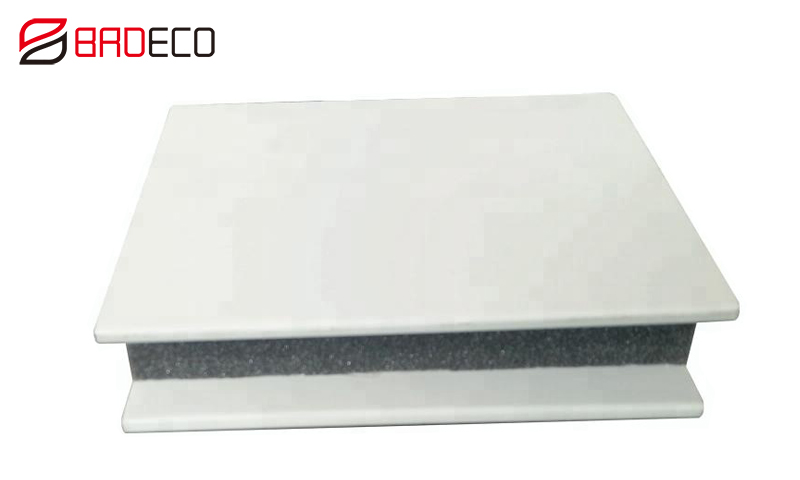

The polyurethane PU cold room panel is composed of two galvanized steel sheets and rigid polyurethane foam in the middle. Because the polyurethane cold room panel has several outstanding advantages, such as thermal insulation, waterproof, lightweight, and fast installation, It has been widely used as the building material of cold storages, cool rooms, clean rooms, free-dust workshops and exterior walls in cold places. At present, the BRD polyurethane cold room panel has five different thicknesses: 20-300mm.
|Heat conductivity||≤0.024 W/m.k|
|The bond strength between the sandwich core layer and panel||>0.1 Mpa|
|Stripping Performance||The core material on the surface||Uniform distribution|
|The adhesive area of each stripping surface||≥92%|
Features of Cold Room Sandwich Panel
- Low thermal conductivity and good thermal performance.
- Moisture-proof and waterproof.
Application of Insulated Cold Room Panels

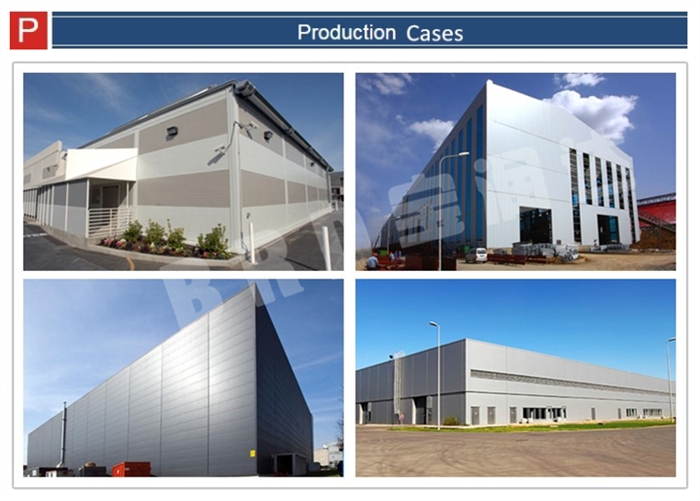

BRD pu cold room panel is widely used in food, supermarkets, hotels, aquatic products, medical, biological, chemical, industrial and mining enterprises, and other industries. It can be customized according to customer requirements. Reference thickness of the panel as the following. Also, the panel thickness also based on the chiller room, freezer room, blasting room, cold room size:
|Cold Storage Goods||Temperature Range|
|Fruit, vegetable, dry food||0C~-5°C|
|Medicine, cake, pastry, chemical material||0C~-5°C|
|Ice storage room||-5~-10°C|
|Fish, meat storage||-18~-25°C|
