PU sandwich 4 wave roof panel
PU sandwich 4 wave roof panel
PU sandwich 4 wave roof panel

Puffed Sheets For Roofing Pu Sandwich Panel Price

PU sandwich panel
As a new material in structure, the polyurethane roof panel has been the most suitable choice for many users.
Description of Polyurethane Sandwich Panels Price
Characteristics of PUF Wall Panel Price
Usage of Sandwich Panel Polyurethane
Company Introduction
Description of Polyurethane Sandwich Panels Price
PU sandwich panel price (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.

We produce two kind of sandwich panels, one is roof PU sandwich panel, another is wall sandwich panel.

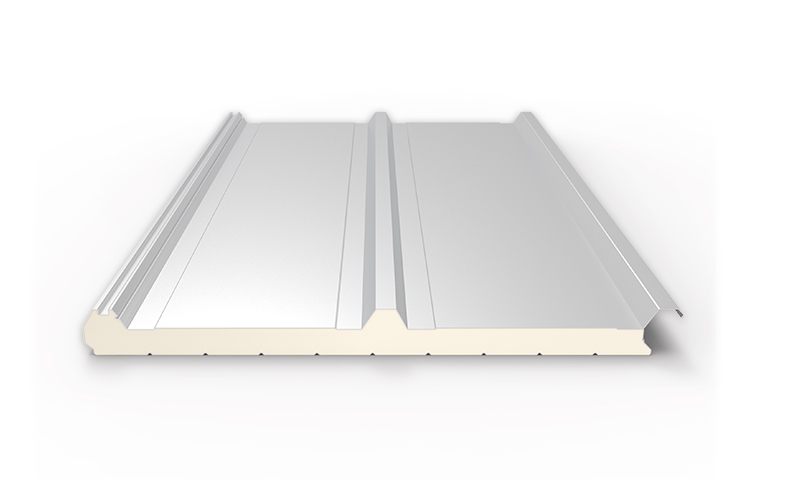

PU Sandwich Roof Panel
Structure three layers:
(1)upper layer is steel sheet,
(2)the inner layer is PU sandwich,
(3)the bottom layer is also steel sheet
Steel Thickness 0.4~0.7mm
Panel thickness 50--200 mm
Length  1-11.8m
Effective width 1000mm
Core material polyurethane foam
Density 40--45(kg/m³)
color Ral Color
Parts Steel line for easy connect one by one Film covering in order to protect the steel of panels
Lifetime 20-35 years
Character Light in weight, heat insulation, fireproof and waterproof,environmental
Usage the large size factory buildings,storages, exhibition halls, gymnasiums ,etc
Packing Packed by shipping Container or according to your demands


Characteristics of PUF Wall Panel Price
water resistance and sound proof.
  • weather proofing.
  • fire retardant level:B
  • high strength and bending resistance.
  • easy quick installation and dismantling,labour cost saving.
  • light weight compared to traditional stone or plaster panel.
  • safe and green,good appearance,without formaldehyde.
  • Lifespan: can reach 15-20 year.
Usage of Sandwich Panel Polyurethane
Can be used for wall, roof, floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets,  hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc.
Strong bearing capacity
Strong bearing capacity
Created exclusively 4 wave roof panel in China for the first time, more powerful for snow load.
Beautiful waterproof
Beautiful waterproof
Exclusively adopt the 3 wave roof, embedded installation, dark nail waterproof technology, easy installation, guarantee 100% hold water.
Super flame retardation
Super flame retardation
The coefficient of thermal conductivity is 0.023w/(m•k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits.
Easy and quick installation
Easy and quick installation
Compared with traditional thermal insulation methods, BRD use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.
Company Introduction
BRD Group was established in 1995, which is a listed company in Middle China. It is one of the earliest building materialsmanufacturers.There are more than 30 million square meters production area, more than 500 existing staffs. BRD Group is committedto make the buildings more green, more environmentally friendly and energy saving.

BRD Group is located in Changge Industrial Zoon, Xuchang city, Henan province.Also have two branch workshops located in Zhengzhou and Qingdao city. The three cactories enjoy 100,000 square meters. 7 automatic production line to produce at one time.
The machine is working and show you the detail for reference.
We have attend many exhibitions all over the world.
The PU Sandwich Panel produced by our factory is equipped with certificates.
