Insulated Eps Coolroom Sandwich Polystyrene Panels For Sale

EPS Sandwich Panel

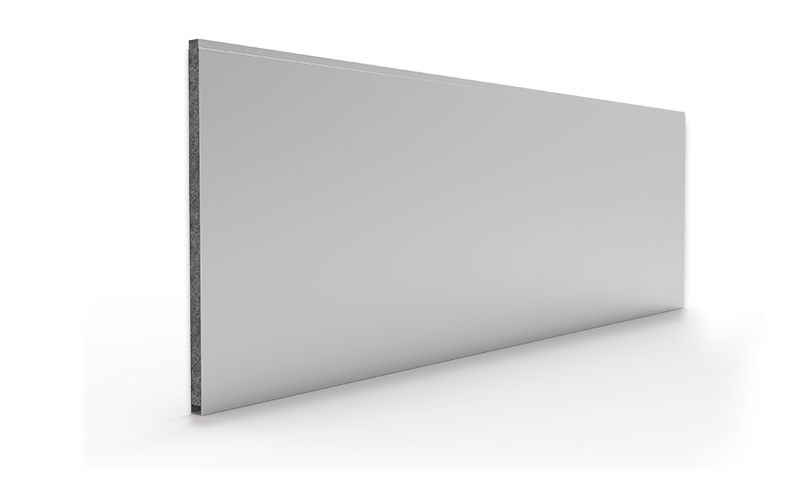

EPS (Polystyrene) Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core Polystyrene (EPS) rigid foam.
Description of EPS Insulated Sandwich Panel
Specifications of EPS Panels for Sale
Features of Polystyrene Wall Panels
Advantage
Application
Factory Show
Description of EPS Insulated Sandwich Panel
Polystyrene Sandwich Panel also called EPS Sandwich Panel. The top & bottom Surface of this panel is Galvanized & pre-painted steel sheets, core material is polystyrene, it is formatted by laminating and pressing with 2 components PU glue. The sandwich panel is featured with temperature keeping, hot & sound insulation, anti water and fire resistant. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.

BRD Panel System Comprise of Pre-Fabricated Composite sandwich panels with high density EPS Converted to Lamellar as core and profiled/ plain,colour coated galvanized steel / Galvalume Steel sheet facing on both sides, complete with joint sealants and fixing ancillaries.

Application of Polystyrene Panels for Sale
Panels System provides an one step solution in the form of insulated Walls and Roofing for easy and quicker construction of Various Roof and Wall of Factory Building, Hospitals,Storages,Exhibition Halls,Clean Rooms andFall Ceiling Purposes.
EPS Insulation Provides Light weight,Heat insulation,Water resistant with EPS of density 12-16 kg/m3
Colour coated Sheet requirement for Eps panel will be 0.45-0.6mm.
Panels are available in Various length (upto 8 mtrs) and Standard effective width of 980-1000 mm and thickness 50-100mm
The panels are finished with tongue & groove jointing arrangement
Panels For Both Wall & Roof Available
*Main Technical Parameters
(support surface thickness is 0.5mm for both,EPS Density is 16Kg/m3)
Specifications of EPS Panels for Sale
No ITEMS DESCRIPTION
1 Structures -The upper and bottom sheets are respectively zinc-plated & color-coated steel sheets, thickness : 0,3-0,6mm-Core material: EPS, Density: 11-40 kg/m3.
2 Width -Effective width 1000mm, width: 1030mm
3 Length -Depend on customer requirement (<12m transport within)
4 Thickness -Wall panel: 50mm, 75mm, 100mm, 150mm
Roof panel: 50mm, 75mm, 100mm, 150mm
5 Color -Blue, Ivory, White, Grey…
6 Applications – Prefabricated house, Industrial sheds, Warehouses, Commercial complexes, indoor/outdoor stadiums, cold storage, buildings & indoor partitions etc

Features of Polystyrene Wall Panels
Advantages of EPS Building Panels:
  • Major savings in energy cost.
  • Light weight and easy installation.
  • High standard of thermal insulation.
  • Can be produced rapidly and on demand in the required quantity and length.
  • Can be easily transported to wherever they are needed.
  • Lower cost solution compared to traditional building materials.
  • Saves construction and maintenance cost.
  • Provides durability and long life.
Advantage
SUPER FLAME RETARDATION
SUPER FLAME RETARDATION
The coefficient of thermal conductivity is 0.023w/(m.k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits.
ECONOMICAL
ECONOMICAL
Great flame retardation and the complete removal of cold bridges (during the rafter installation), do help reduce heating bills.
DURABLE
DURABLE
BRD PU sandwich panels are the most durable thermal insulating material in the construction industry. Under the normal maintenance, its service life is the same with buildings.
ECOLOGICAL
ECOLOGICAL
100% of the material is recyclable and the panels are friendly to the environment at the production and disposal stages.
EASY AND QUICK INSTALLATION
EASY AND QUICK INSTALLATION
Compared with traditional thermal insulation methods, BRD use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.
Application
PU sandwich panels are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure. Thanks to its hidden joint the panel ensures very aesthetic look of the wall or façade. In particular the panels can be applied in


Industrial buildings,

Store houses and logistic centres,

Commercial buildings and offices,

Food industry facilities,

Agricultural objects

Sport halls.
Factory Show
