Rock Wool Sandwich panel

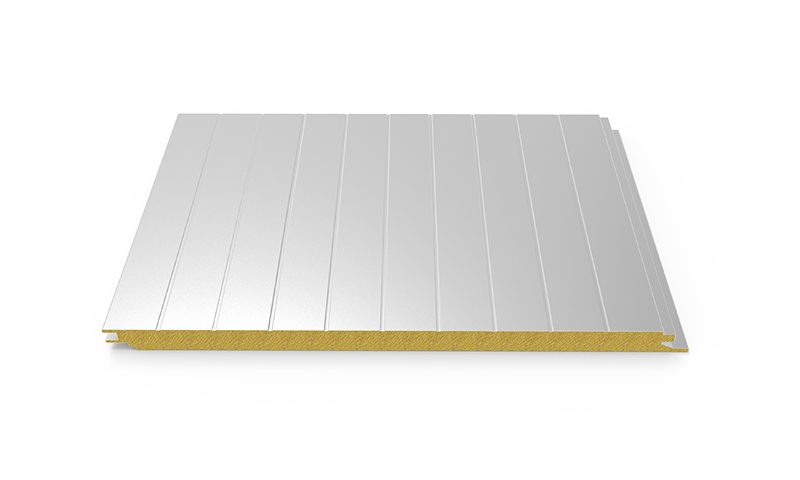

Rock wool Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density Rockwool (Mineral Wool).
Description of Rockwool Sip Panels
Specifications of Rigid Rockwool Insulation Board
Usage of Rockwool Sip Panels
Advantage
Factory Show
Description of Rockwool Sip Panels
Rock wool sandwich panel is applicable to project with fairly high demand upon fire protection . The rock wool fibers plum to the color steel sheet plates . high density strip rock wool crisscross with the length of the color steel plates . All of this guaranteed the rock wool sandwich panel have a good bearing capability . Wall panel and roof tile has 50mm , 75mm , 100mm , 125mm , 150mm foam with 0.326mm , 0.4-0.6mm steel sheet widely use for prefabricated house, construction site, building, warehouse, worker camp, office ect.


It is low cost and thermal insulation , fireproof , sound insulation. The fix width of wall panel or roof tile has 1150 and 950mm , length is no limited but less than 12000mm because of the transportation . The surface metal coat could adopt galvanize aluminum steel sheet , galvanized aluminum zinc color steel sheet and the galvanized color steel sheet.



Taking high-quality natural rocks such as basalt, gabbro and others as main materials, the core material is a kind of artificial inorganic fiber after the process of high temperature melting and fiberization with the characteristics of very low slag and dust content and non-absorbent.it is "real rock wool"!



Specifications of Rigid Rockwool Insulation Board
Panel characteristics Panel thickness [mm]
50 75 100 150 200
Functions
  • External walls
  • partition walls
  • internal ceilings cover
  • objects insulation
Standard Facings
  • steel sheet coated with polyester paint, 25µm
  • Aluminum sheet with Zn 50 – Zn 180g
  • stainless steel
Steel thickness [mm]  0.4, 0.5, 0.6, 0.7, 0.8
Rock wool core material density 100 / 120 kg/m³
Panel areal weight [kg/m²] 15.50 18.50 22.5 30.00 36.50
Thermal conductivity λD[W/mK] 0.043
Thermal transmittance
U-value [W/m²K]
0,63 0,48 0,39 0,27 0,20
Acoustic insulation [dB] 27
Length [mm] As customized
Effective width [mm] 1000mm(option 950,1150)
Fire resistance - EI 90 / E 120 E 120 / EW 60
Corrosion resistance C1, C2, C3







Features of Rockwool Sip Panels
1. Our rock wool sandwich panel has the following characteristics: light dead weight, high mechanical strength, excellent shearing resistant performance, strong corrosion resistance, high durability, etc.
2. The sandwich panel has excellent insulating performance: heat insulation, sound insulation,  etc.
3. It is easy to install and can be used many times over.
4. Nowadays, the rock wool sandwich panel is widely used for cleaning workshops, industrial factory buildings, office buildings, stadiums, villas, and public buildings,prefabricated house etc.




Usage of Rockwool Sip Panels
Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc.
Advantage
COST SAVING & DURABILITY
COST SAVING & DURABILITY
The rock wool sandwich panel insulation stone wool is made from rock, making it naturally durable and stable over the lifetime of a building. As the unique physical structure, rock wool panel is not affected by changes in temperature or humidity. This means the owner can create a pleasant and stable temperature year after year, while saving energy and money for cooling/heating.
FIRE SAFETY
FIRE SAFETY
Have you ever seen rock burn? Neither have we. Rock Wool Panel Products are rated Non-combustible. Basalt stone wool adopted to Sandwich Panels is fire-protecting insulation material, it's fibers’ resistance to high temperatures, will limit the buildings to fire or spread. Using Rock wool sandwich panel will improve the building's fireproof performance, protect life and property safety.
SOUND INSULATION
SOUND INSULATION
Sound is tough to get through rock. Rock wool sandwiched panels are the most effective acoustic insulation used in construction. Installing Rock wool panel provides a real reduction in external noise, our rock wool panels allow builders to design the right acoustic environment for each space, whether it’s a workshop, concert hall, air clean room, or residential house.
FAST CONSTRUCTION
FAST CONSTRUCTION
Rock wool sandwich panels and accessories are produced in full accordance with the building layout drawing, it is fast  and flexible to install on the construction site. The construction period can be shortened by more than 40%. Therefore, rock wool sandwich panel is ideal for fast constructed prefabricated buildings, such as industrial warehouse, container house, prefab buildings.
LONG LIFE TIME
LONG LIFE TIME
Rock wool sandwich panel is produced by the automatic production machine at a constant temperature, all the raw materials and process are in strict accordance with the international quality management system. which means the quality of the product is stable, can guarantee the life time of 25 years.
Factory Show
